NDPlot



Plotting Software for Nuclear Data

CNDC







     NDPlot is an efficient plotting tool for nuclear data. It is not only a plotting tool for nuclear data, but also integrated application software.

     We have released the beta version of NDPlot with a NDPlot server on the internet. NDPlot can plot experimental and evaluated data of reaction cross sections, angular distributions of secondary particles, energy distributions of secondary particles and energy-angle distributions of products.

    Since September 2018, it has been able to plot the chain yields and energy dependent fission product yields, including experimental data and evaluated data. NDPlot also provides tools to filter fission yield data and correct the data with new gamma data.

System Requirement

windows 7 x64,windows 8 x64,windows 10 x64, windows 11 x64

NDPlot

Yield Energy Dependence and Chain Yield



Ta-181-DA 14.x MeV



Download:

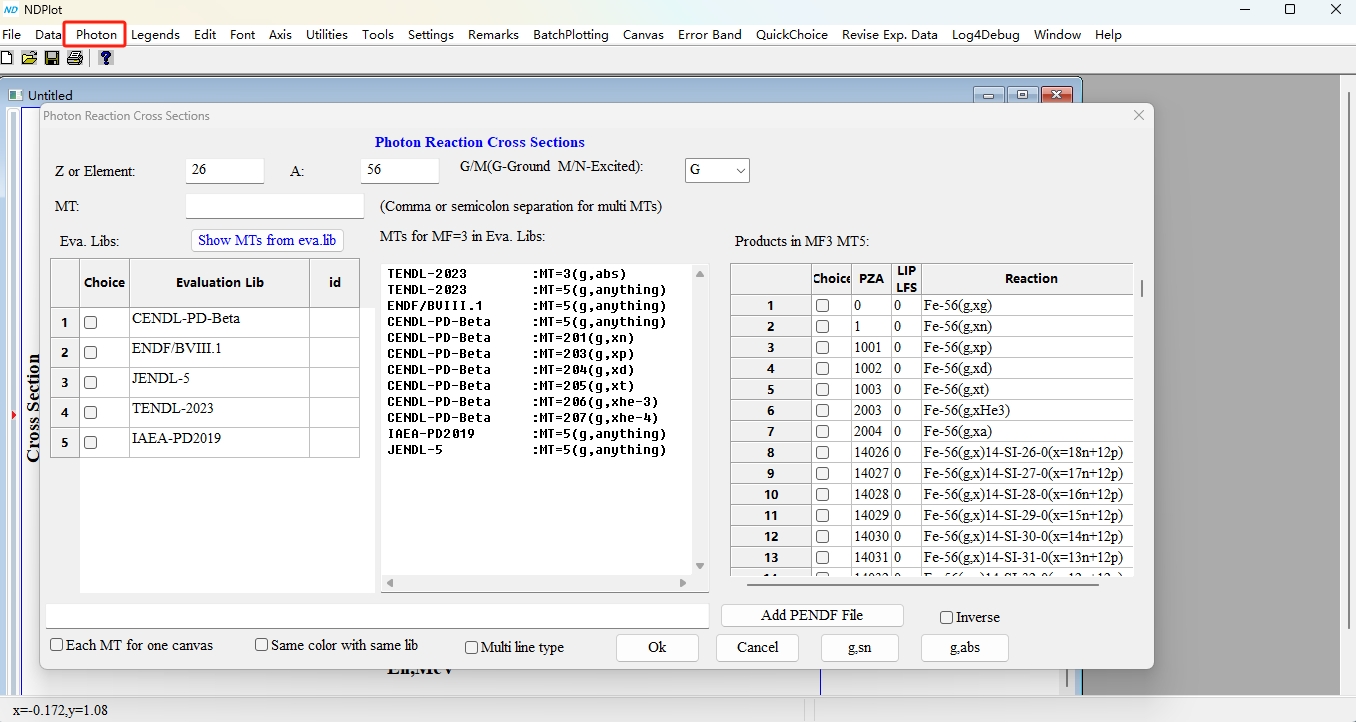

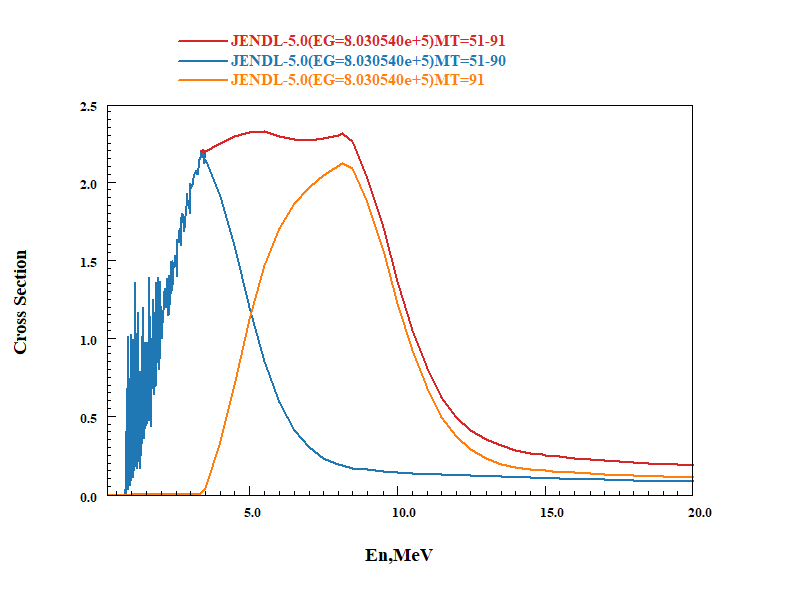

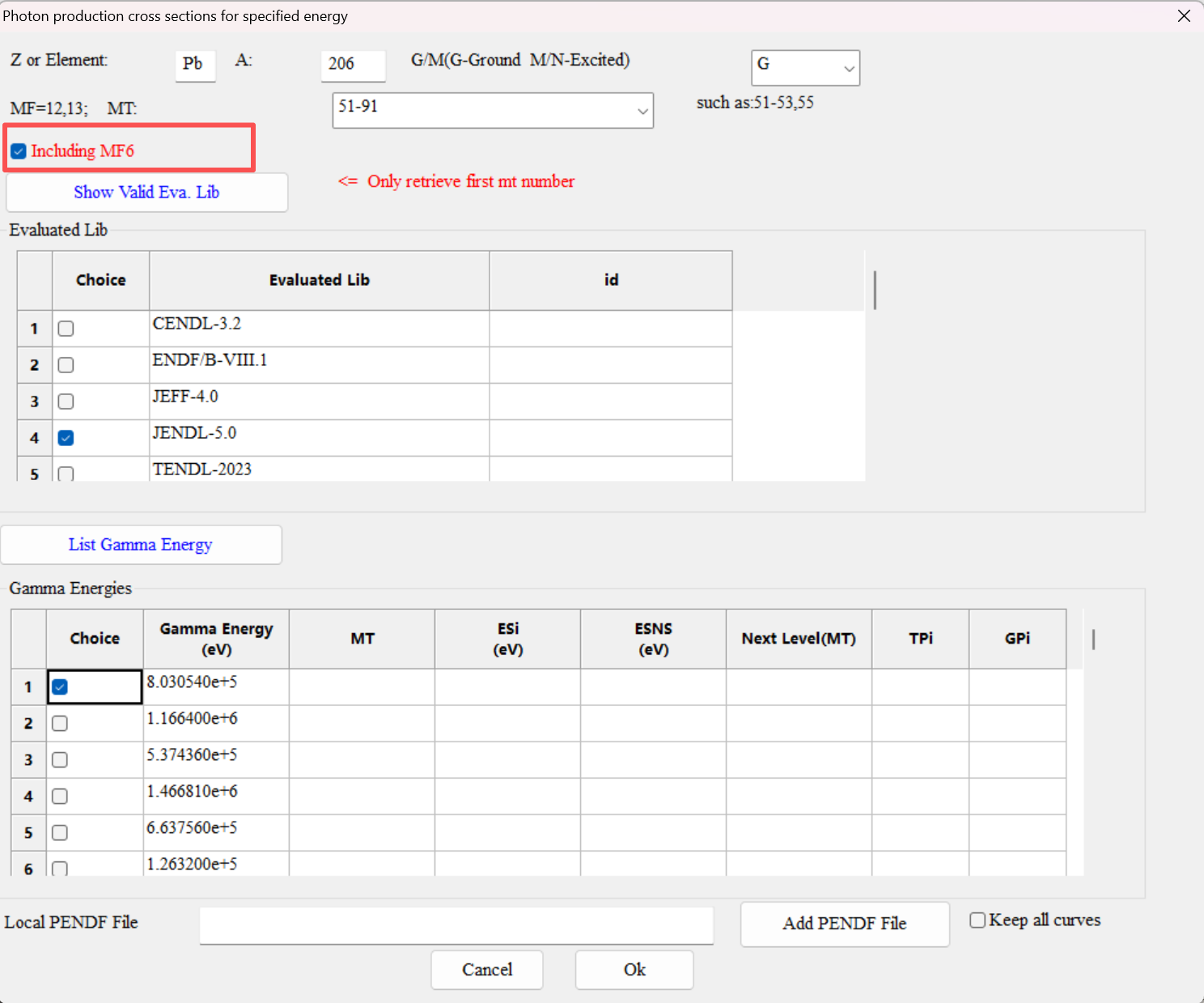

NDPlot 0.98.1 Beta Aug.18,2023 Chinese Manual

NDPlot 0.97 Beta Dec.20,2022

NDPlot 0.96 Beta Dec.20,2021

New Features:

1. Solve the problem of slow drawing with huge data
2. Radioactive nuclides production cross sections plotting


3. More flexible legends Settings.

NDPlot 0.95 Beta Dec.14,2020

New Features:

1 Ratio with curves.

ratio

2 More convenient for processing of natural nuclide data.

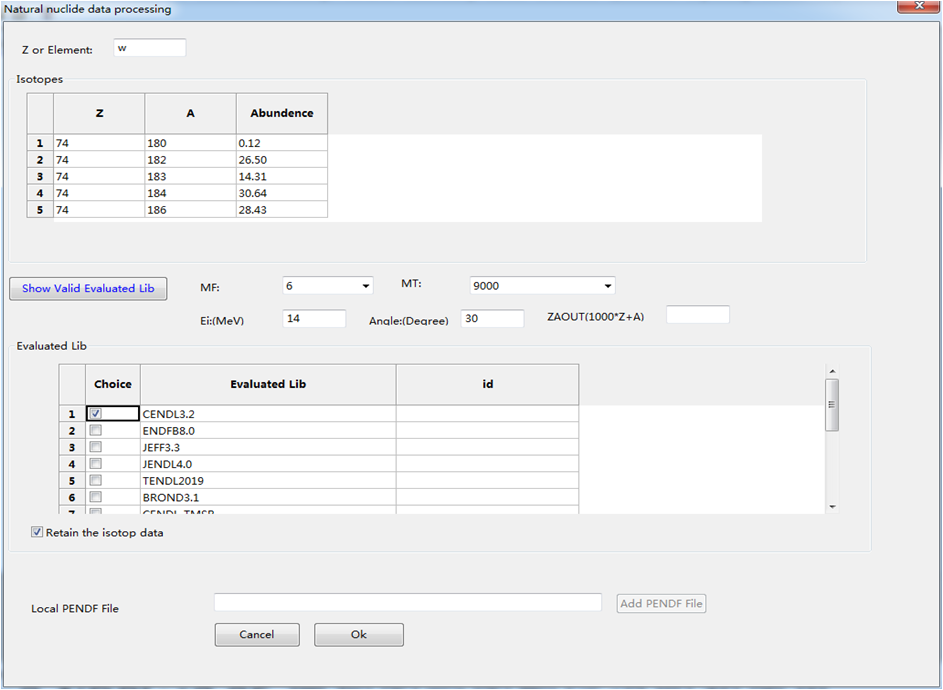

natural

3 Curve error bands are displayed in turn.

4 Fix some bugs.

NDPlot 0.94 Beta May.13,2019

New Features:

1 Input parameter files for theoretical calculation programm can be stored in project files with timestamp.

2. Multiple threads support for summation with curves


----------------------------------------------------------------------------------------------------------------------



NDPlot 0.93 Beta Dec.24,2018

New Features:

1 Adding curves to Project from ENDF File.
A project file can have a list of nuclear reactions.(Z,A,M,MF,MT,E,Angle,factor),
The corresponding nuclear reaction curves from a theoretically calculated or evaluated ENDF/B File can be easyly loaded.

2. Summation with curves
The curves can be summed

----------------------------------------------------------------------------------------------------------------------



NDPlot 0.92 Beta Nov.,09,2018

New Features:

1.BatchPlotting support special treatment of inelastic scattering cross sections(discrete level excitation cross sections). Demo

2.Number of Neutrons per Fission. Demo

3.Chain yields and energy dependent fission product yields



----------------------------------------------------------------------------------------------------------------------



NDPlot 0.91 Beta Oct.,17,2018
